A heavy-duty bottle jack is only useful when its capacity and height range match the load. We compared six models rated for 20 tons or more, including a low-profile option, an air-assisted jack, and a 50-ton model for larger equipment.
Quick picks
Our rankings use current published specifications and product-page evidence. We did not load-test these jacks.
VEVOR 20-Ton Air Hydraulic Bottle Jack
The pneumatic/manual dual mode, 10.2-to-19.5-inch published lift range, screw adjustment, overload valve, and return springs make this the most versatile 20-ton option in the group.
- 20-ton rating with a 10.2-to-19.5-inch stated lift range
- Pneumatic quick-connect operation plus a manual backup
- Overload valve, aluminum cylinder seal, and dual return springs
The 20-ton rating and broad published lift envelope cover many truck, RV, farm, and shop tasks, provided the 10.2-inch collapsed height fits.
Air operation reduces manual pumping when a compressor is available, while the manual mode preserves field usability.
Cast iron and carbon steel, an aluminum cylinder seal, an overload valve, and dual return springs form a well-documented protection package.

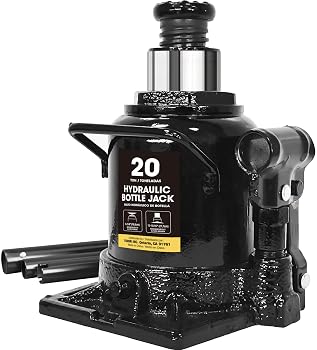

BIG RED AT92007AB 20-Ton Low-Profile Bottle Jack
Its 6-5/8-inch collapsed height is the standout choice when taller 20-ton jacks cannot reach the approved lift point, while welded forged-steel construction and overload protection retain the core heavy-duty features.
- 20-ton rating with a 6-5/8-inch collapsed height
- Adjustable screw top and 10-15/16-inch stated maximum height
- Welded forged-steel structure with oil-bypass and overload valve
The 20-ton rating and unusually low 6-5/8-inch starting height solve an access problem that taller heavy-duty jacks cannot.
Low access is excellent, though the shorter maximum height and manual-only pump limit travel and convenience.
Drop-forged alloy steel, welded construction, oil-bypass and overload protection, and a one-year limited warranty are clearly documented.
BIG RED TAM92003B 20-Ton Welded Bottle Jack
This straightforward manual model combines a useful 9-7/16-to-17-5/8-inch range, adjustable screw top, forged welded construction, overload protection, and a one-year warranty.
- 20-ton rating and 9-7/16-to-17-5/8-inch lift range
- Adjustable screw top with glide-action manual pump
- Drop-forged welded steel with oil-bypass and overload valve
Its 20-ton rating and clearly documented mid-height lift envelope suit many heavy vehicles and shop loads.
The adjustable screw top improves setup, but operation remains fully manual and the base height is not especially low.
Forged alloy steel, welded inner and outer structure, bypass and overload protection, and a one-year warranty are all documented.
VEVOR 50-Ton Welded Hydraulic Bottle Jack
The 50-ton published rating is the clear choice for appropriately matched industrial, farm, or heavy-truck loads, but its 11-inch minimum height is the tallest starting point among the finalists.
- 50-ton rating with an 11-to-17.32-inch stated lift range
- Three-section manual handle for added leverage
- Welded body with leak-control claim and overload valve
The 50-ton rating leads the field, but the 11-inch minimum height demands careful measurement before purchase.
A three-section handle adds leverage, yet the tall starting height and manual-only operation narrow its everyday fit.
Welded construction, a published temperature range, sealing claims, and overload protection are useful, though warranty details are not stated in the checked listing bullets.
YELLOW JACKET 20-Ton Multidirectional Bottle Jack
The listing's horizontal-use capability is unusual and potentially useful in confined setups, while the 20-ton rating, serrated saddle, welded structure, and safety features cover the conventional lifting role.
- 20-ton rating with a 9-1/4-to-17-1/2-inch lift range
- Listed for horizontal as well as upright use
- Heat-treated serrated saddle and welded steel structure
The 20-ton rating and conventional lift range are useful, though neither capacity nor geometry leads the field.
Listed horizontal operation creates a real access advantage, but buyers must follow the manual's orientation and contact-point limits.
Welded steel, a heat-treated saddle, sealing claims, built-in safety features, and a bottom valve are documented, but warranty support is unclear.

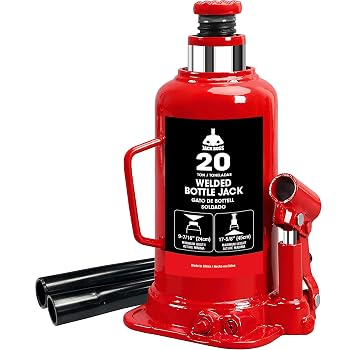

Jack Boss 20-Ton Hydraulic Bottle Jack
This lower-priced eligible option publishes the essential capacity, dimensions, weight, welded alloy-steel construction, overload protection, and warranty, but offers no low-profile or pneumatic advantage.
- 20-ton rating with a 9-7/16-to-17-5/8-inch lift range
- 19.36-pound listed weight and adjustable screw top
- Welded alloy-steel cylinder with oil-bypass and overload valve
The 20-ton rating and familiar lift range cover the core job, but geometry matches rather than exceeds the leading manual models.
The screw top helps setup and the listed weight is clear, but it remains a conventional manual jack with no special access feature.
Welded drop-forged alloy steel, oil-bypass and overload protection, and a one-year warranty are documented, with less detail than BIG RED provides.
Heavy-duty bottle jack comparison
| Rank | Product | Rated capacity | Lift range | Operation | Construction | Protection / support |
|---|---|---|---|---|---|---|
| 1 | VEVOR 20-Ton Air Hydraulic Bottle Jack | 20 tons (44,092 lb listed) | 10.2-19.5 in; 2.6-in screw | Pneumatic + manual | Cast iron / carbon steel listed | Overload valve; dual return springs |
| 2 | BIG RED AT92007AB 20-Ton Low-Profile Bottle Jack | 20 tons (40,000 lb) | 6-5/8-10-15/16 in | Manual; adjustable screw top | Drop-forged alloy steel; welded | Oil-bypass / overload valve; 1-year warranty |
| 3 | BIG RED TAM92003B 20-Ton Welded Bottle Jack | 20 tons (40,000 lb) | 9-7/16-17-5/8 in | Manual; adjustable screw top | Drop-forged alloy steel; welded | Oil-bypass / overload valve; 1-year warranty |
| 4 | VEVOR 50-Ton Welded Hydraulic Bottle Jack | 50 tons (110,231 lb listed) | 11-17.32 in | Manual; 3-section handle | Welded steel listed | Overload valve; leak-control claim |
| 5 | YELLOW JACKET 20-Ton Multidirectional Bottle Jack | 20 tons (40,000 lb) | 9-1/4-17-1/2 in | Manual; horizontal use listed | Welded steel; heat-treated saddle | Built-in safety features; bottom valve |
| 6 | Jack Boss 20-Ton Hydraulic Bottle Jack | 20 tons (40,000 lb) | 9-7/16-17-5/8 in | Manual; adjustable screw top | Drop-forged alloy steel; welded | Oil-bypass / overload valve; 1-year warranty |
Specifications are Amazon listing claims checked on September 7, 2026. Prices, ratings, review counts, and stock are omitted because they change frequently.
How to choose a heavy-duty bottle jack
Start with capacity, then check the lifting point
The jack must have enough rated capacity for the portion of the load it will lift. Do not choose from vehicle curb weight alone. Check the vehicle or equipment manual for approved lifting points, axle or corner loads, and any required adapters.
Measure collapsed and raised height
A high tonnage rating does not help if the jack cannot fit under the lift point. Measure the available clearance before purchase. Then confirm the jack can raise the load far enough to place a correctly rated stand. The low-profile BIG RED starts at 6-5/8 inches but reaches only 10-15/16 inches, while taller models provide more travel.
Decide whether air assistance matters
An air hydraulic model makes sense in a shop with a suitable compressor and frequent lifting work. A manual backup remains useful away from an air line. For occasional garage or roadside use, a conventional manual jack is simpler to carry and set up.
Safe bottle jack use
Work on a firm, level surface. Apply the parking brake, follow the vehicle or equipment manual, and chock the wheels that remain on the ground. Center the saddle on an approved lifting point and keep your body clear while the load rises.
A bottle jack lifts; it does not replace a support stand. Place correctly rated stands at approved support points before anyone works beneath a raised load. Never exceed the lowest rating in the lifting setup, never adjust an overload or safety valve, and do not use a jack that leaks, creeps down, or has damaged parts.
The YELLOW JACKET listing states that its model can work horizontally. That does not make horizontal use safe for every bottle jack. Follow the exact model manual, orientation limits, and contact requirements.
How we ranked these jacks
We screened 16 Amazon US listings and retained six models rated at 20 tons or more. Capacity and fit account for 40% of the rating. Access and operation account for 30%, and build and safeguards account for the remaining 30%. We checked each finalist’s exact Amazon page for identity, availability, lift range, operation, construction, and protection features.
These rankings compare published specifications. BTG did not measure lifting effort, verify rated capacity, test leak resistance, assess stability under load, or validate cold- and hot-weather performance.
Frequently asked questions
Is a 20-ton bottle jack enough for a truck?
It may be, but the vehicle manual and the load at the approved lifting point decide that. Confirm both the required capacity and the available clearance. Do not assume every truck can use the same jack.
Can I work under a vehicle held by a bottle jack?
No. Lower the vehicle onto correctly rated stands placed at approved support points before working underneath it. Keep the jack in place only if the vehicle or support-equipment instructions call for it.
Is a 50-ton jack better than a 20-ton jack?
Only when the load calls for that capacity and the jack fits the lifting point. The 50-ton VEVOR starts at 11 inches, so it can be too tall for jobs that a lower-capacity, low-profile model can reach.
Final verdict
The VEVOR 20-Ton Air Hydraulic Bottle Jack is our top pick because it combines air and manual operation with a broad published lift range and clear overload protection. Choose the BIG RED AT92007AB when collapsed height is the main constraint. For appropriately matched heavy equipment, the VEVOR 50-Ton model provides the highest published capacity, but its 11-inch starting height must fit the job.
